Kenwood KFC-PS2517W - 10" Car Subwoofer 1300W Max Power

Name: Kenwood KFC-PS2517W - 10" Car Subwoofer 1300W Max Power
Brand: caraudioproducts
Price: 64.99 GBP
Availability: InStock

£64.99 GBP

~~£74.99 GBP~~ £64.99 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Description

IMPPTMSpecifications:
- 250mm Polypropylene Cone (PP Cone)
- 400 Rated/RMS Input Power
- High-ridged Two-piece Diaphragm for solid bass
- X-motif cap Technology for resonance control
  Specifications:
  - 250mm Polypropylene Cone (PP Cone)
  - 400 Rated/RMS Input Power
  - High-ridged Two-piece Diaphragm for solid bass
  - X-motif cap Technology for resonance control
  - Single, multi-layered, voice coil.
  - Aluminum bobbin for better thermal conductivity
  - Airflow control for optimal heat radition
  - Stress controlled spider
  - Push-terminals for easy connection
  - Sealed/Ported installation capabillity
  Speaker Features
  - Speaker Size 250mm
  - Oversized Dimension
  - Speaker Cone Design Diamond-Array pattern
  - Magnet Type Ferrit
  - Voice-coilsingle, multi-layer voice coil
  - Terminals Push Type
  - Spider Stress controlled spider
  - Bottom-Yoke Fully closed bottom yoke
  - Heat dissipation technology Airflow control
  - Installation Capabillity Sealed / Ported
  Speaker/woofer Specifications
  - Peak Input Power 1300W
  - Rated Input Power 400W
  - Woofer Cone material Polypropylene (PP) Cone
  - Center Cap Type x-motif cap
  - Speaker Basket Steel
  - Speaker Surround Foam
  - Spider Type Stress controlled Spider
  - Sensitivity 85dB/W/m
  - Frequency Response 33Hz ~ 300Hz
  - Speaker Impedance 4Ω

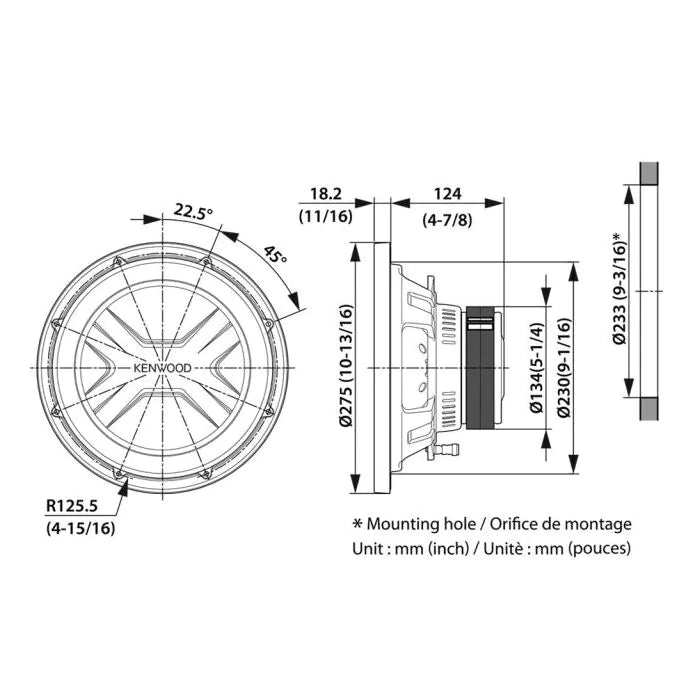

  - Dimensions (W x H x D) 275 x 275 x 142.2mm
  - Mounting Depth 124mm
  - Mouting Hole Diameter Ø 230mm
  - Speaker Weight 4000gr
  Subwoofer Parameters
  - Nominal impedance (Z) 4Ω
  - DC resistance (Re) 3.7Ω
  - Resonant frequency (FSO) 33.7Hz
  - Mechanical Q factor (QMS) 6.95
  - Electrical Q factor (QES) 0.554
  - Total Q factor (QTS) 0.513
  - Voice coil inductance (LBM) 1.9mH
  - Voice coil diameter (d) 50mm
  - Force factor (BL) 13.2T/m
  - Peak excursion Xmax 5.9mm
  - Moving mass (MMS) 124gr.
  - Volume accoustic compliance (VAS) 31.9liter
  - Piston Area (SD) 0.0512m²
  - Displacement 0.9cc
  - Sealed box volume 18.4liter
  - Sealed Box Dimensions 375 x 324 x 229mm ( 18mm thick MDF)(WxHxD)
  - Vented box volume 25.5liter
  - Vented Box Dimensions 464 x 311 x 330mm ( 18mm thick MDF)(WxHxD)
  - Port dimensions (labyrinth) (W x H x L) 29 x 273 x 648mm
- Single, multi-layered, voice coil.
- Aluminum bobbin for better thermal conductivity
- Airflow control for optimal heat radition
- Stress controlled spider
- Push-terminals for easy connection
- Sealed/Ported installation capabillity
Speaker Features
- Speaker Size 250mm
- Oversized Dimension
- Speaker Cone Design Diamond-Array pattern
- Magnet Type Ferrit
- Voice-coilsingle, multi-layer voice coil
- Terminals Push Type
- Spider Stress controlled spider
- Bottom-Yoke Fully closed bottom yoke
- Heat dissipation technology Airflow control
- Installation Capabillity Sealed / Ported
Speaker/woofer Specifications
- Peak Input Power 1300W
- Rated Input Power 400W
- Woofer Cone material Polypropylene (PP) Cone
- Center Cap Type x-motif cap
- Speaker Basket Steel
- Speaker Surround Foam
- Spider Type Stress controlled Spider
- Sensitivity 85dB/W/m
- Frequency Response 33Hz ~ 300Hz
- Speaker Impedance 4Ω
- Dimensions (W x H x D) 275 x 275 x 142.2mm
- Mounting Depth 124mm
- Mouting Hole Diameter Ø 230mm
- Speaker Weight 4000gr
Subwoofer Parameters
- Nominal impedance (Z) 4Ω
- DC resistance (Re) 3.7Ω
- Resonant frequency (FSO) 33.7Hz
- Mechanical Q factor (QMS) 6.95
- Electrical Q factor (QES) 0.554
- Total Q factor (QTS) 0.513
- Voice coil inductance (LBM) 1.9mH
- Voice coil diameter (d) 50mm
- Force factor (BL) 13.2T/m
- Peak excursion Xmax 5.9mm
- Moving mass (MMS) 124gr.
- Volume accoustic compliance (VAS) 31.9liter
- Piston Area (SD) 0.0512m²
- Displacement 0.9cc
- Sealed box volume 18.4liter
- Sealed Box Dimensions 375 x 324 x 229mm ( 18mm thick MDF)(WxHxD)
- Vented box volume 25.5liter
- Vented Box Dimensions 464 x 311 x 330mm ( 18mm thick MDF)(WxHxD)
- Port dimensions (labyrinth) (W x H x L) 29 x 273 x 648mm
Woofer Size 25 cm
Type D4 / Dual Voice Coil (DVC)
Max Power 1300 Watt
Continuous power output 400 W
Impedance 4 Ω
Dual Voice Coil (DVC)
Terminals Push Type
25cm / 10"
